Pageable Table

Introduction

Pageable Table is a CustomComponent based in Vaadin Table with server side pagination and filtering support. It's rely on JDAL core PageableDataSource interface to fetch data (by pages) from database.

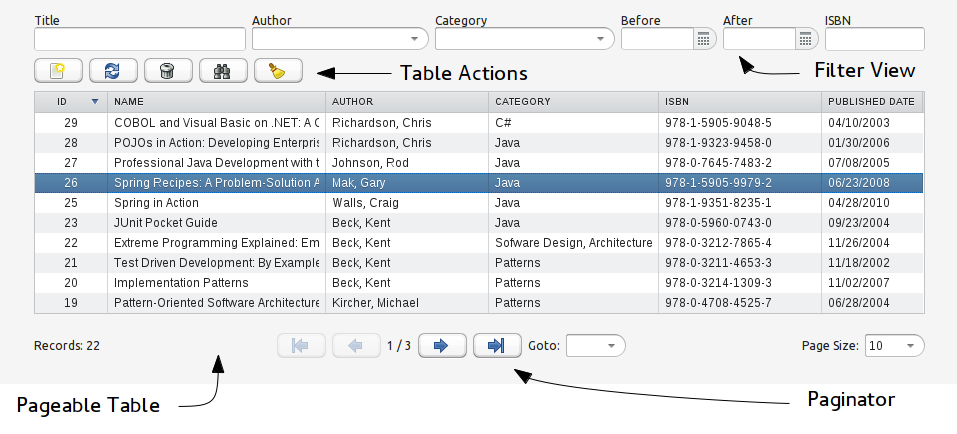

Pageable Table Components

The Pageable Table it's build using the following components:

Paginator: By default org.jdal.vaadin.ui.table.VaadinPaginator
TableActions: A button bar with table related actions. JDAL provides default actions for adding, refreshing, removing and filtering records.
FilterView: A JDAL View for a org.jdal.dao.Filter model.
JDAL DAO: to use as PageableDataSource.
Editor View: optionally we could define an editor to edit records on row double clicks.

To avoid excessive configuration, PageableTable expects the following naming convention when looking for components. For a entity named org.example.Entity:

DAO: entityService
Editor View: entityEditor
Paginator: defaultPaginator
TableActions: defaultTableActions

Declaring a Pageable Table

Usually, we inject pageable tables inside other Vaadin components using the @Resource annnotation. For pageable tables it's easier to use xml bean definition files instead configuration classes.

<!-- Book Table Definition -->
<vaadin:table entity="org.jdal.samples.model.Book" filter-form="bookFilterEditor" scope="prototype">
    <vaadin:columns>
        <vaadin:column name="id" display-name="ID" width="60" align="center"/>
        <vaadin:column name="name" display-name="Name" width="300" align="left" />
        <vaadin:column name="author" display-name="Author" width="150" align="left" sort-property-name="author.name" />
        <vaadin:column name="category" display-name="Category" width="200" align="left" sort-property-name="category.name" />
        <vaadin:column name="isbn" display-name="ISBN" width="150" align="left" />
        <vaadin:column name="publishedDate" display-name="Published Date" width="150" property-editor="customDateEditor"/>
    </vaadin:columns>
</vaadin:table>

The pageable table definition above will look for a bean named as "bookService" for fetching data by pages. Let's see how to configure it to add the filtering feature.

Filter

JDAL Daos delegates on CriteriaBuilder interface to build JPA criterias based on a filter model. Creating a filter for a entity is very straight forward, simply extends org.jdal.dao.BeanFilter and add the members to use as filter data.

public class BookFilter extends BeanFilter {

	private String name;
	private String authorName;
	private String authorSurname;
	private Date before;
	private Date after;
	private String isbn;
	private Category category;

	public BookFilter() {
		this("bookFilter");
	}

	public BookFilter(String filterName) {
		super(filterName);
	}

	// Getter And Setters...
}

CriteriaBuilder

We use a JpaCriteriaBuilderSupport base class to easily create a critera builder for the book DAO.

public class BookCriteriaBuilder extends JpaCriteriaBuilderSupport<Book, Book> {

	public BookCriteriaBuilder() {
		super(Book.class);
	}

	/**
	 * {@inheritDoc}
	 */
	@Override
	protected void doBuild(CriteriaQuery<Book> criteria, CriteriaBuilder cb, Filter filter) {
		BookFilter f = (BookFilter) filter;
		List<Predicate> predicates = new ArrayList<Predicate>();

		if (!StringUtils.isEmpty(f.getName()))
			predicates.add(like("name", f.getName()));

		if (f.getAuthor() != null)
			predicates.add(equal("author", f.getAuthor()));

		if (f.getCategory() != null)
			predicates.add(equal("category", f.getCategory()));

		if (f.getAfter() != null)
			predicates.add(greatThanOrEqualTo("publishedDate", f.getAfter()));

		if (f.getBefore() != null)
			predicates.add(lessThanOrEqualTo("publishedDate", f.getBefore()));

		if (!predicates.isEmpty())
			addAndWhere(criteria, cb, predicates);
	}
}

JDAL DAO

Finally, we need to configuire a JDAL DAO for the book entity and add the CriteriaBuilder.

<jdal:service entity="org.example.Book">
    <jdal:criteria name="bookFilter" builder="bookCriteriaBuilder" />
</jdal:service>

<bean id="bookCriteriaBuilder" class="org.example.dao.BookCriteriaBuilder"/>

For a full sample application see vaadin-sample-jpa.
